Product Parameters
HPB-16LV-S
Product Overview
Battery Energy16076.8Wh
Rated Voltage51.2[VDC]
Charge/Discharge Voltage Range44.8~57.6[VDC]
Maximum Charge/Discharge Current157A/157A
Net Weight137.5kg
DimensionsL481.2*W261*H1025mm

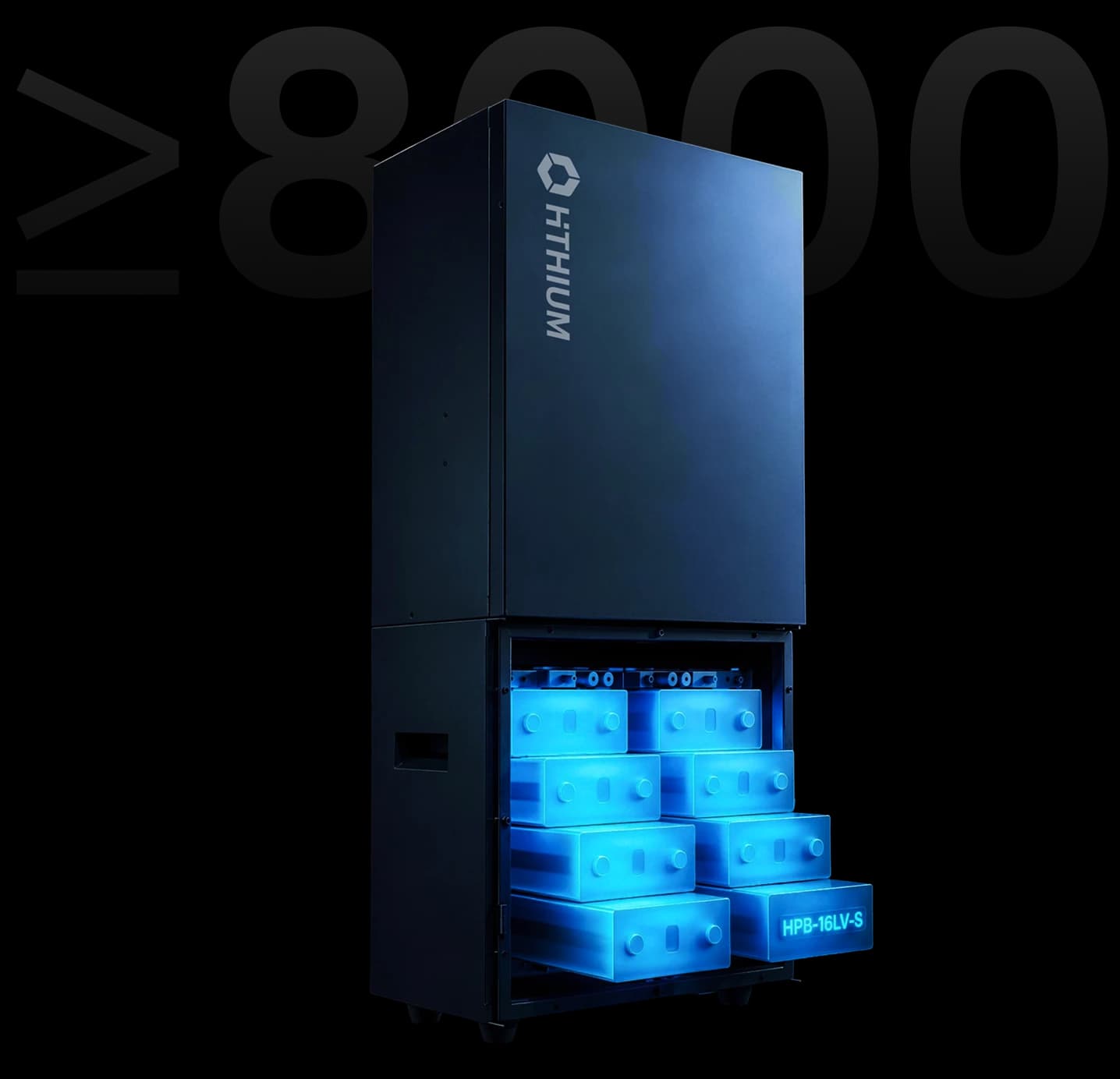

Long Cycle Life LFP technology
Long cycle life LFP battery with grid-proven cells, ≥8000 cycle lifespan and low heat generation for superior safety and durability.

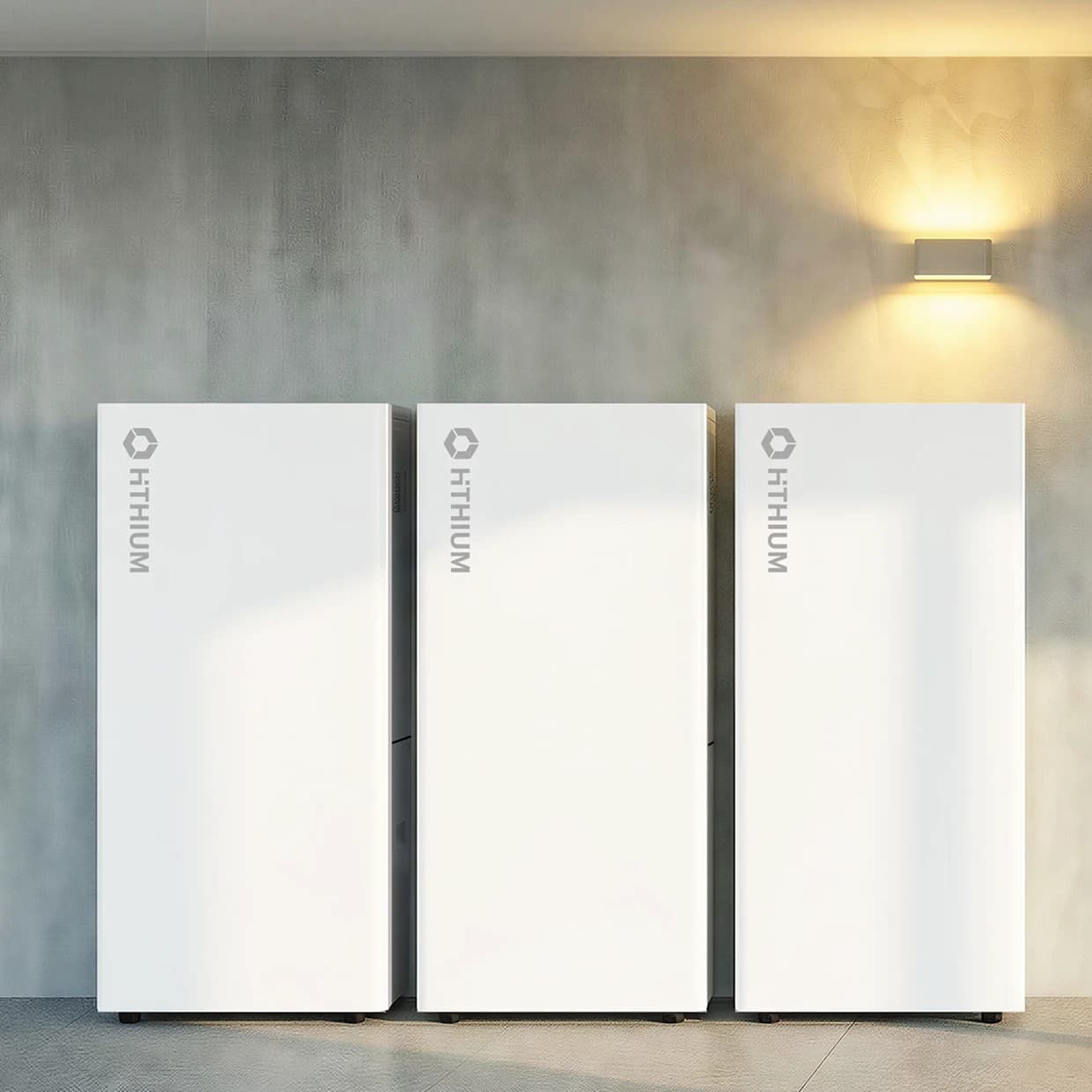

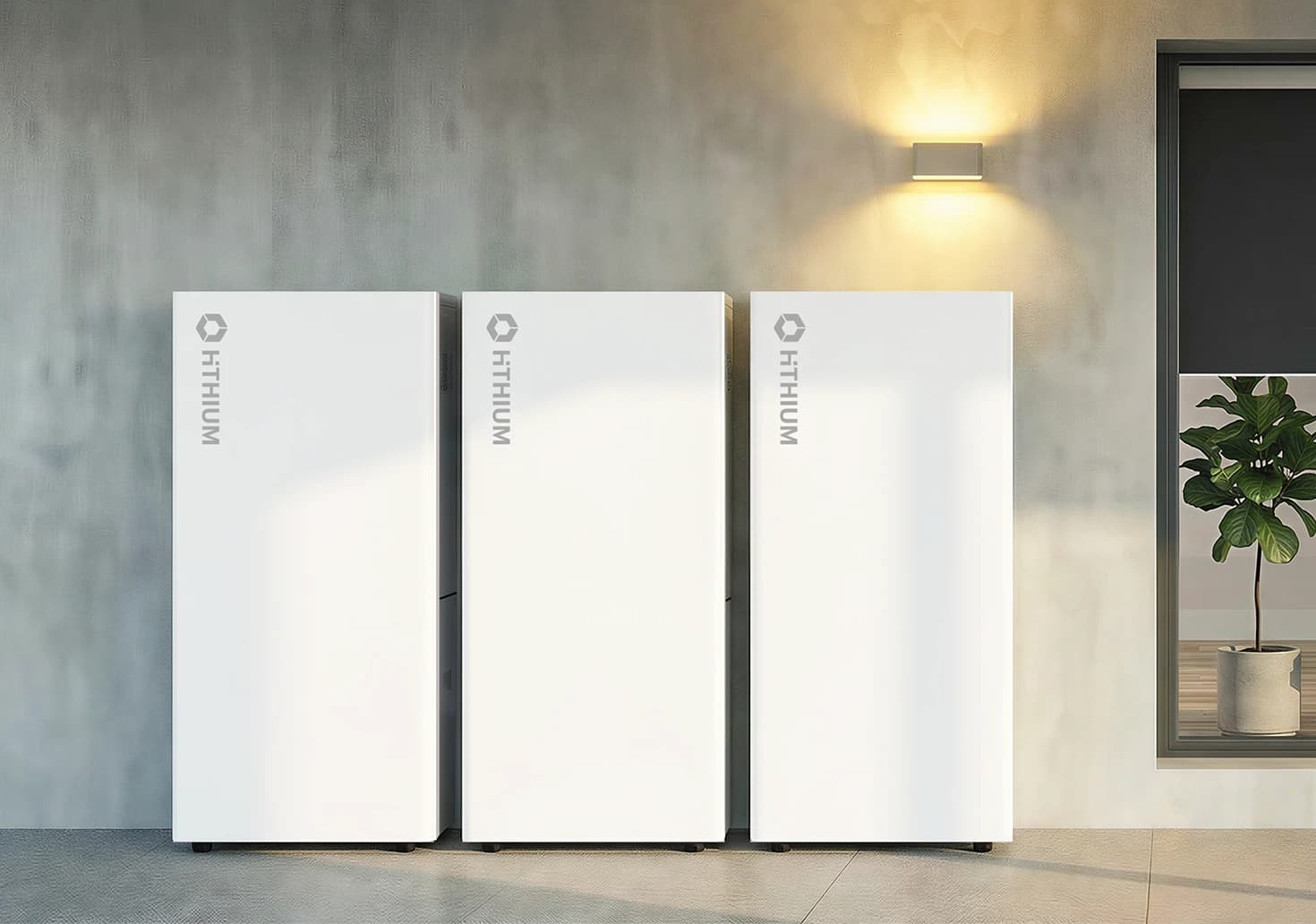

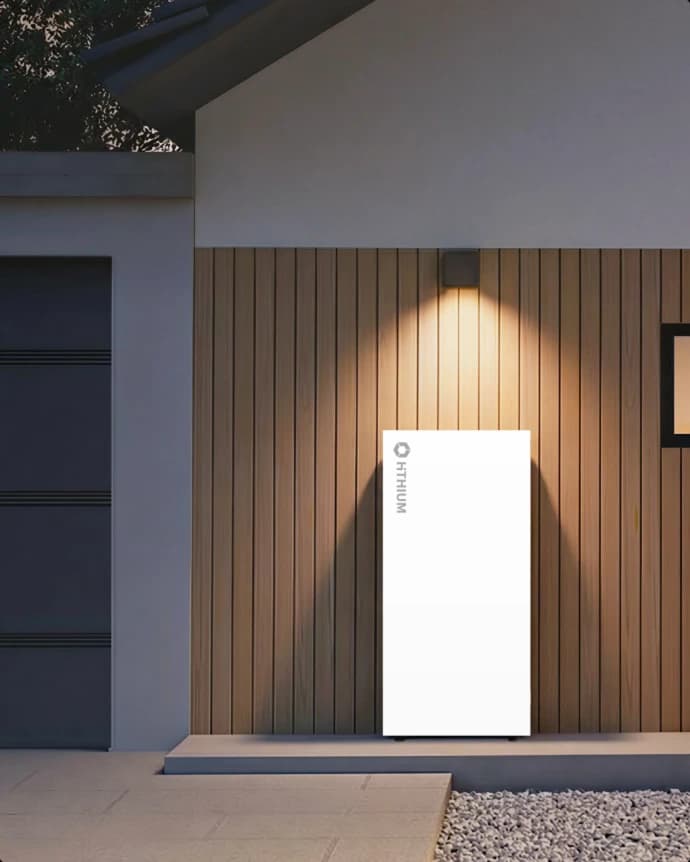

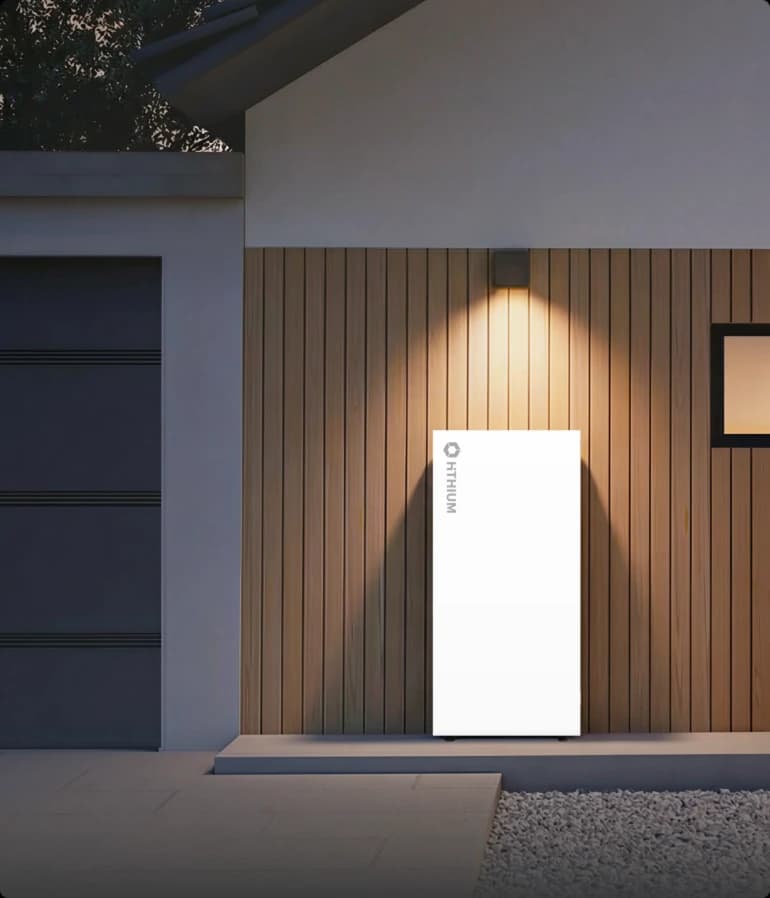

Flexible Capacity Expansion
Unique split-type LV battery: 8kWh per module, stack-to-plug fast installation, scalable up to 512kWh.

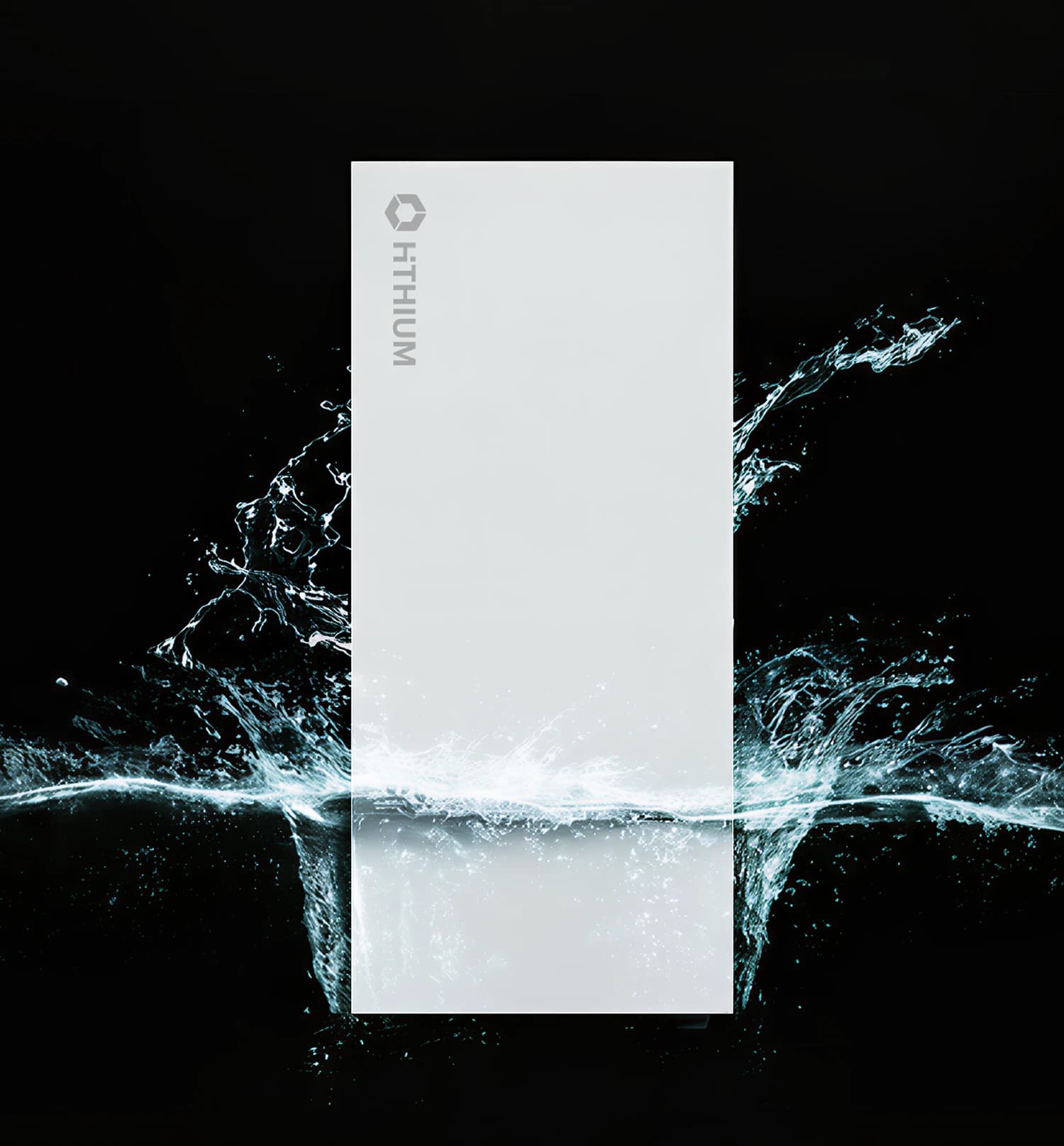

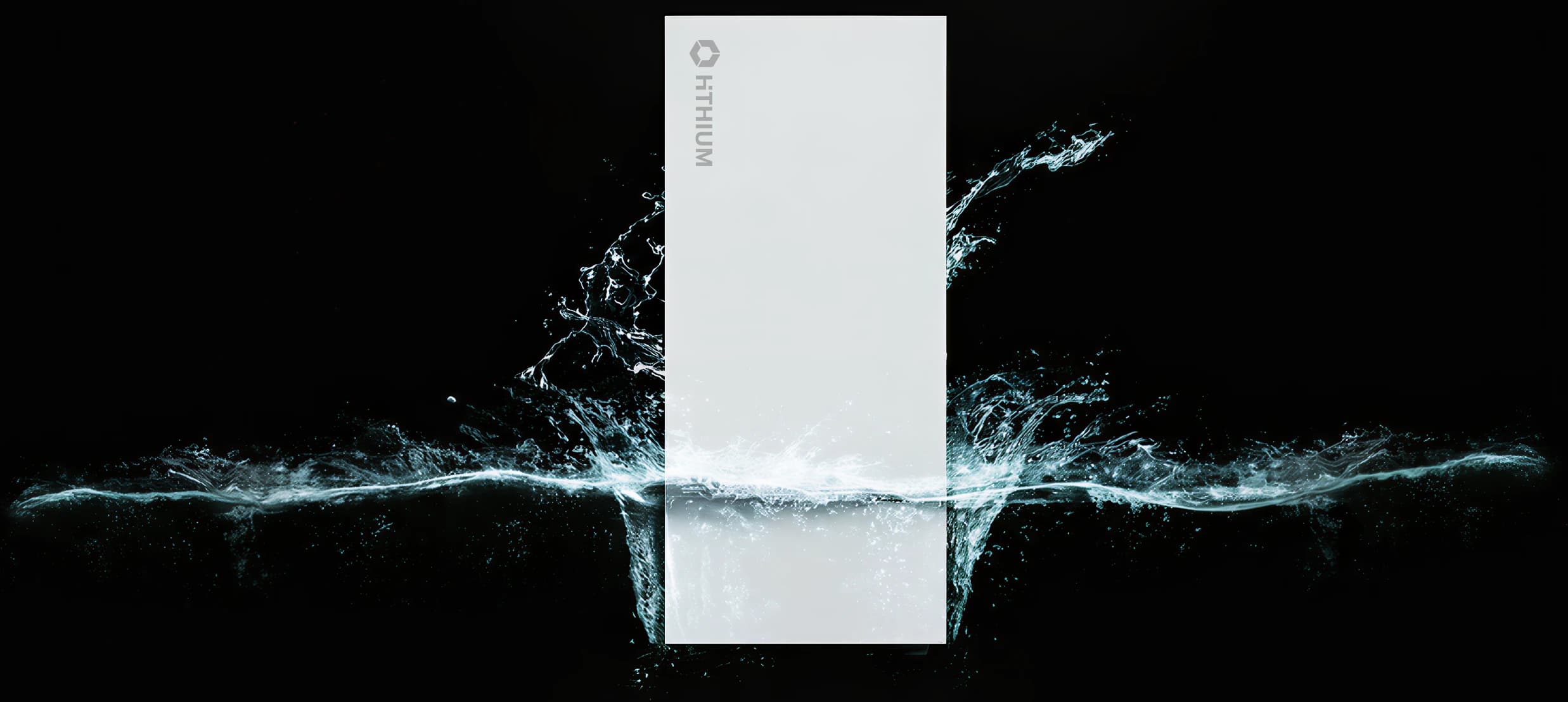

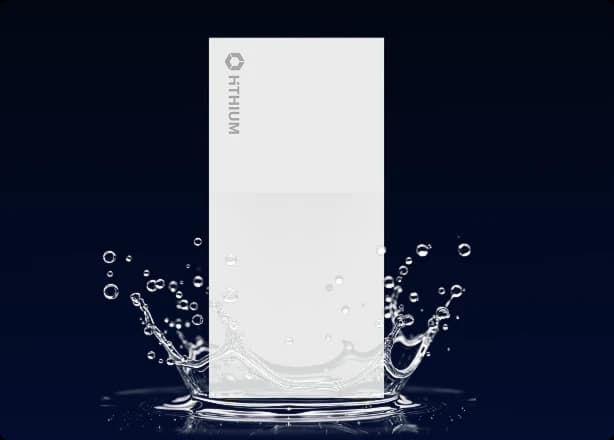

Built for All Weather Conditions
IP65 rated. Withstands 40cm water immersion, superior water resistance.

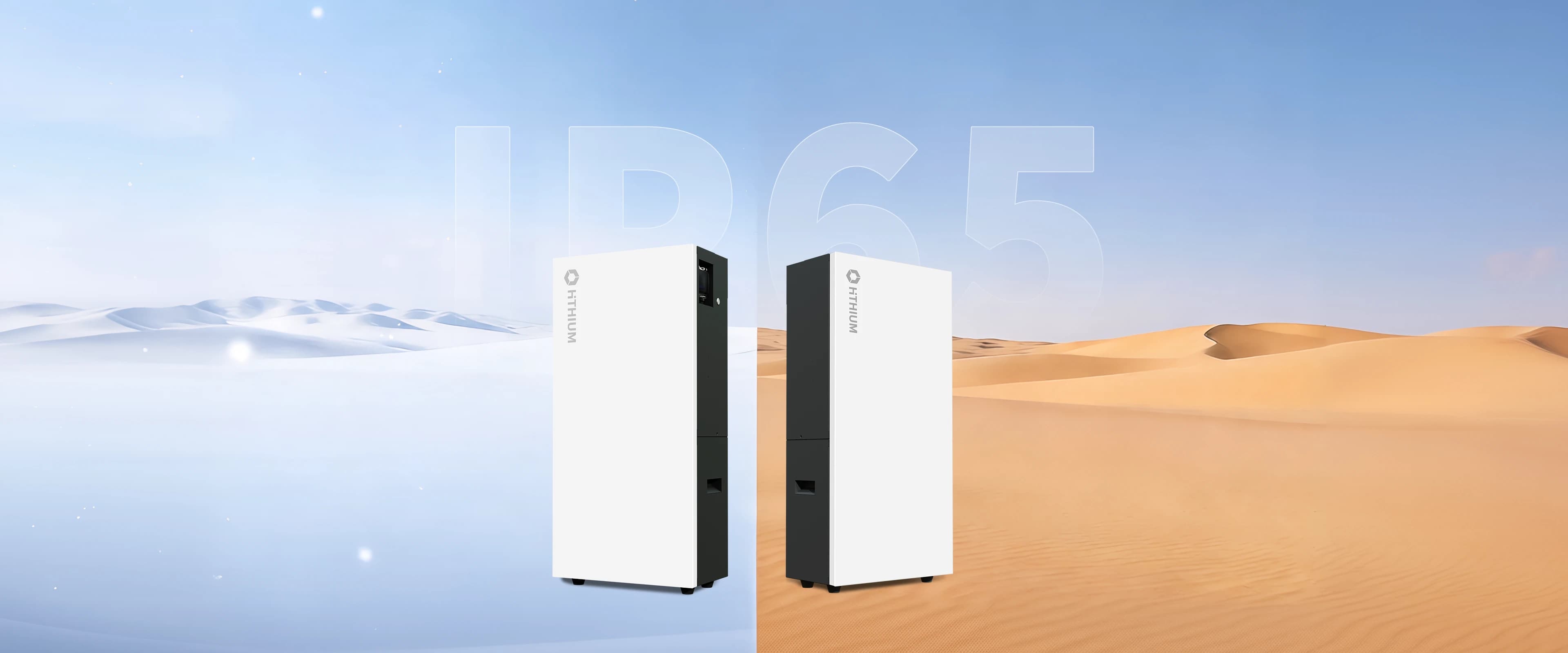

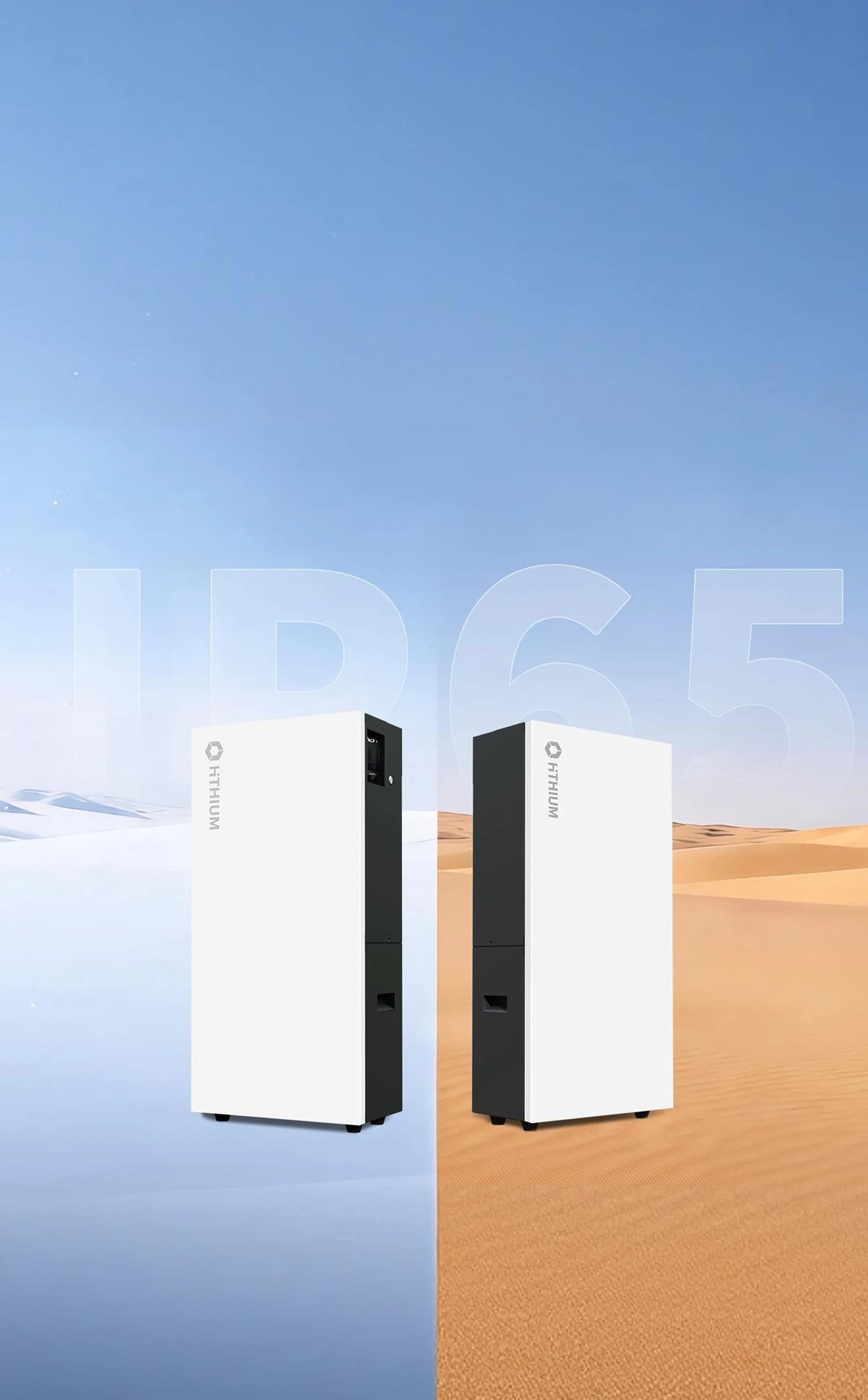

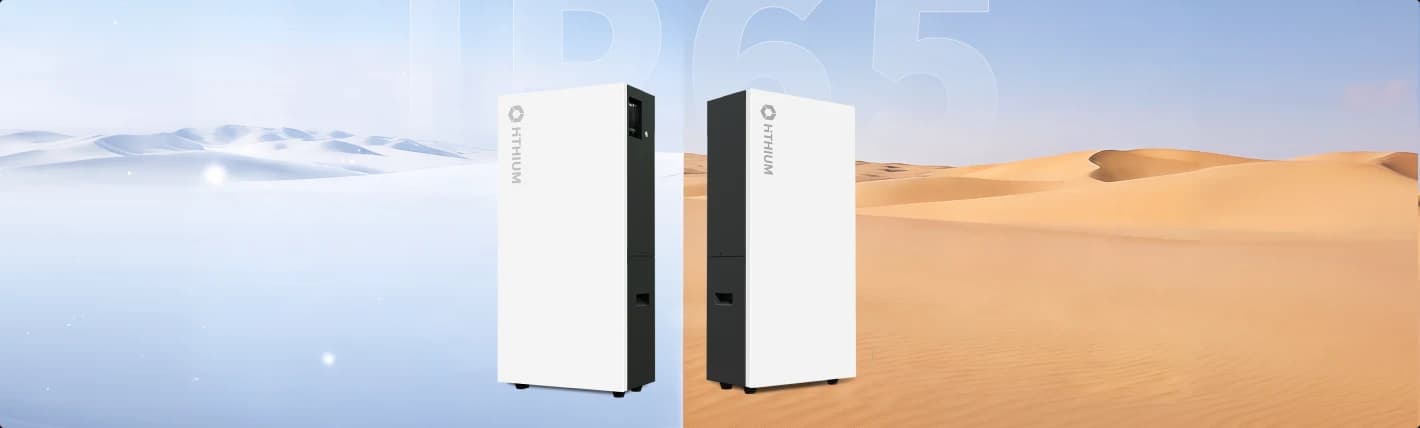

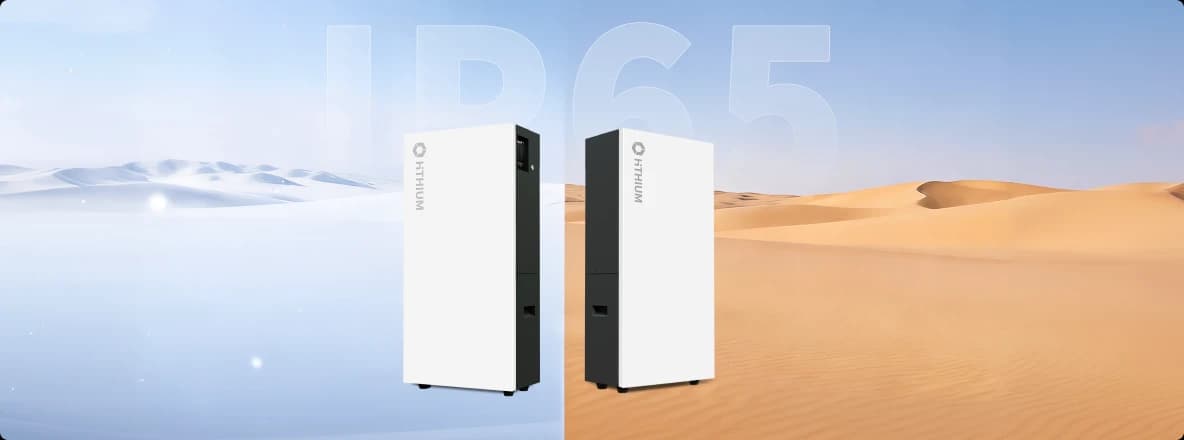

Operating Temperature Range：-20℃-55℃
Tests under specific conditions. Details subject to warranty and user manual.
-20℃
55℃
